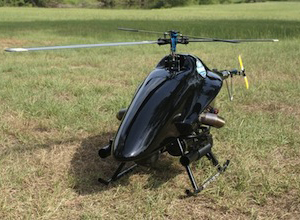

Basic UAS unit with CCD TV optics, standard semi-autonomous flight avionics package and turbine or piston power plant.
MK-II
Upgraded UAS with day CCD TV camera as well as FLIR optics package, fully autonomous avionics package and turbine or piston power-plant.
MK-III
UAS with day CCD, FLIR and thermal cameras, fully autonomous avionics and weaponized with either 40mm, 37mm grenade launcher or 12 gauge shotgun with laser designator (military/LE use only.)
MK-IV
Unavailable to non-military users.
Payload Characteristics
Optics:
Sony FCB EX-980 CCDTV, 20X Zoom FLIR Photon 320, Tau UTAM-32 Thermal Camera
Avionics:
Semi/Full autonomous system radio link, Auto Take-off/Land, Pilot Assist Module, 30 hz Laser Altimeter, DGPS system with 2cm accuracy option.
Weapons:
U.S. Military and Law Enforcement consumers have less-lethal/lethal options including single or mulitple shot 37 mm/40mm grenade launcher, 12g shotgun
Airframe Characteristics
Dry Weight: 35lbs (16 kg)
Overall Length: 96 in (243.9 cm)
Height: 29.8 in (75.7 cm)
Width: 17 in (43.2 cm)
Rotor Span: 76.5 in (194.3 cm)
Usable Load: 22 lbs (10 kg)
Cruising Speed: 35 mph (56.3 kph)
Max Speed: 70 mph (112.6 kph)
Max Range: 35 miles (56 km)
Fuel Endurance: Turbine 45 min/Piston 3.5 hrs.
